Series B
Built for both agricultural and industrial earthmoving.
Designed for both the large frame FWA tractors and all the 4WD models.
Fully featured machines from 17m3
3500B
Capacity Struck / Heaped (m3): 8.0 /10.0
Trim (overall) Width: 3.45 m
HP Req’d: 300+
Rated Payload: 15.0T
4000B
Capacity Struck / Heaped (m3): 9.0/13.5
Trim (overall) Width: 4.05 m
HP Req’d: 350+
Rated Payload: 22.0T

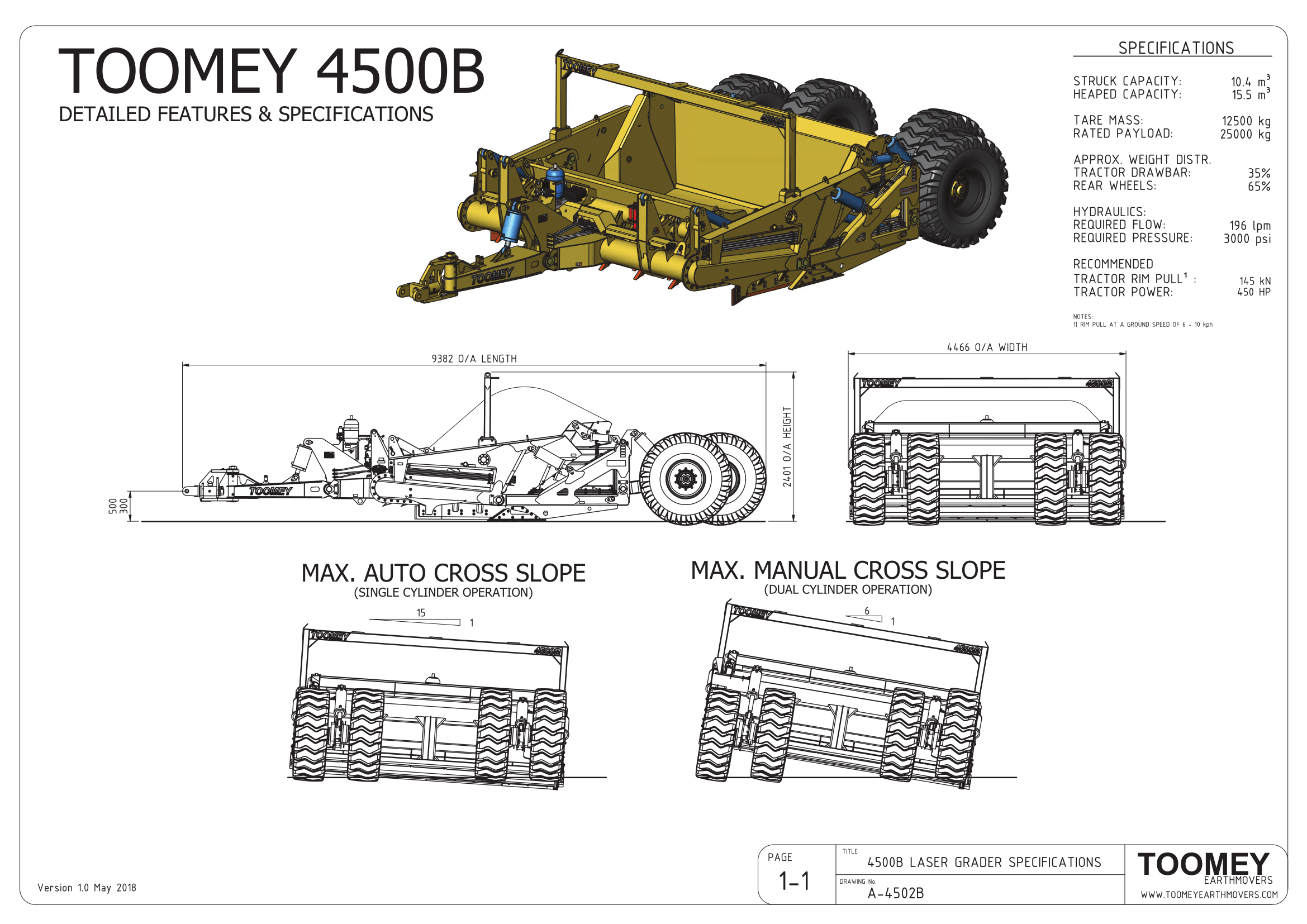

4500B
Capacity Struck / Heaped (m3): 10.4/15.5
Trim (overall) Width: 4.45 m
HP Req’d: 425+
Rated Payload: 25.0T

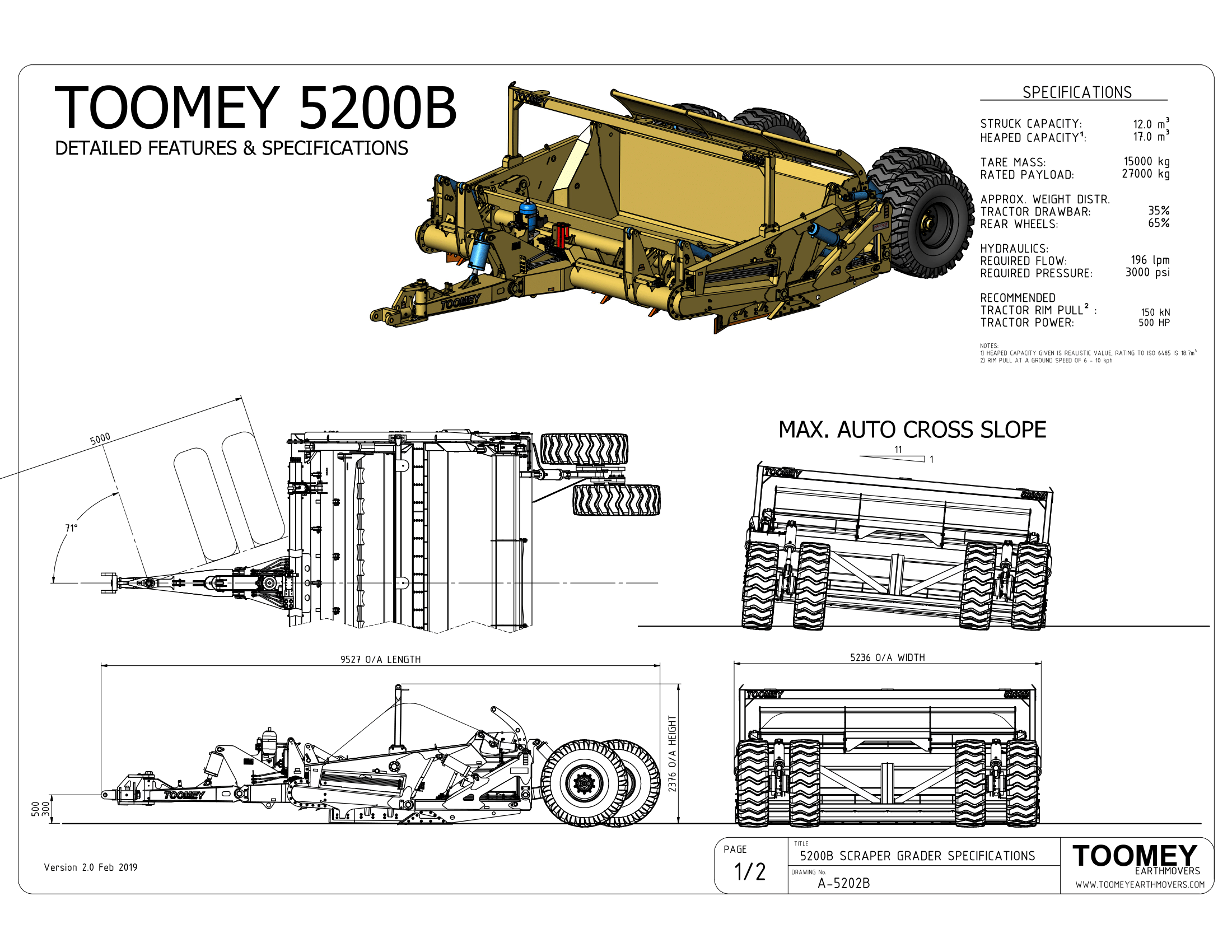

5200B
Capacity Struck / Heaped (m3): 12.0/17.0
Trim (overall) Width: 5.20 m
HP Req’d: 500+
Rated Payload: 27.0T
